這片文章主要是拜讀以下幾篇文章生出來的東西

1. 極米投影機的相關api
2. HA 、博聯Broadlinl RM Mini4風與火的交會二_讓電視轉身實現Homekit TV
3. node-red-contrib-homekit-bridged/wiki/Television-Service

以下設定有問題也可以回來這些地方看看，

這篇只有極米雷射電視的遙控，

如果要再增加其他的電視盒控制也可以由此類推。

首先在packages建立一個xgimi.yaml

binary_sensor:
  - platform: ping
    host: 192.168.0.167 #極米投影機ip
    name: "xgimi_on_off"
    count: 1
    scan_interval: 10

然後要先在home assisatnt安裝node-red，

並導入程式碼，

這部份不會的話可以參考上面第二個連結

程式碼下載連結

程式碼：

[{"id":"193ef564.684623","type":"tab","label":"XGIMI","disabled":false,"info":""},{"id":"5ef1036b.a09064","type":"inject","z":"193ef564.684623","name":"TV on","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"Active\":1}","payloadType":"json","x":490,"y":220,"wires":[["c797e2ba.51097"]]},{"id":"ee2c8ab5.610ec8","type":"inject","z":"193ef564.684623","name":"TV off","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"Active\":0}","payloadType":"json","x":490,"y":260,"wires":[["c797e2ba.51097"]]},{"id":"f5810db9.3ab9b","type":"debug","z":"193ef564.684623","name":"Volume output","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","statusVal":"","statusType":"auto","x":1640,"y":1080,"wires":[]},{"id":"951e2b44.542af8","type":"inject","z":"193ef564.684623","name":"TV Setup","props":[{"p":"payload","v":"","vt":"date"},{"p":"topic","v":"","vt":"string"}],"repeat":"","crontab":"","once":true,"onceDelay":"5","topic":"","payload":"","payloadType":"date","x":500,"y":160,"wires":[["4a28d024.d64998"]]},{"id":"8a085a09.969f7","type":"inject","z":"193ef564.684623","name":"Source Setup","props":[{"p":"payload","v":"","vt":"date"},{"p":"topic","v":"","vt":"string"}],"repeat":"","crontab":"","once":true,"onceDelay":"6","topic":"","payload":"","payloadType":"date","x":420,"y":620,"wires":[["d07eb006.4b6f68"]]},{"id":"4a28d024.d64998","type":"function","z":"193ef564.684623","name":"Setup TV","func":"var name = \"XGIMI\";\n\nmsg.payload = {\n \"ConfiguredName\": name,\n \"ActiveIdentifier\" : 0,\n \"SleepDiscoveryMode\" : 0,\n \"Active\" : 0\n};\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":680,"y":160,"wires":[["c797e2ba.51097"]]},{"id":"b45d18c8.ec71d","type":"inject","z":"193ef564.684623","name":"Input 1","props":[{"p":"payload","v":"{\"ActiveIdentifier\":1}","vt":"json"},{"p":"topic","v":"","vt":"string"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"ActiveIdentifier\":1}","payloadType":"json","x":490,"y":380,"wires":[["c797e2ba.51097"]]},{"id":"fbe1cc7d.dca91","type":"inject","z":"193ef564.684623","name":"Input 0","props":[{"p":"payload","v":"{\"ActiveIdentifier\":0}","vt":"json"},{"p":"topic","v":"","vt":"string"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"ActiveIdentifier\":0}","payloadType":"json","x":490,"y":340,"wires":[["c797e2ba.51097"]]},{"id":"a351aed4.5af608","type":"inject","z":"193ef564.684623","name":"Input 2","props":[{"p":"payload","v":"{\"ActiveIdentifier\":2}","vt":"json"},{"p":"topic","v":"","vt":"string"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"ActiveIdentifier\":2}","payloadType":"json","x":490,"y":420,"wires":[["c797e2ba.51097"]]},{"id":"cc683e88.413bd","type":"inject","z":"193ef564.684623","name":"Input 3","props":[{"p":"payload","v":"{\"ActiveIdentifier\":3}","vt":"json"},{"p":"topic","v":"","vt":"string"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"ActiveIdentifier\":3}","payloadType":"json","x":490,"y":460,"wires":[["c797e2ba.51097"]]},{"id":"d07eb006.4b6f68","type":"function","z":"193ef564.684623","name":"Set up inputs","func":"// This function will initialize and name inputs\n// it is set to work with 4 inputs\n\n// INPUT SOURCE NAMES\nvar input0 = \"Home\";\nvar input1 = \"Youtube\";\nvar input2 = \"MOD\";\nvar input3 = \"Digital TV\";\n\n// INPUT SOURCE TYPES\nvar OTHER = 0;\nvar HOME_SCREEN = 1;\nvar TUNER = 2;\nvar HDMI = 3;\nvar COMPOSITE_VIDEO = 4;\nvar S_VIDEO = 5;\nvar COMPONENT_VIDEO = 6;\nvar DVI = 7;\nvar AIRPLAY = 8;\nvar USB = 9;\nvar APPLICATION = 10;\n\n// Configure your input types based on options above\nvar input0type = HDMI;\nvar input1type = OTHER;\nvar input2type = OTHER;\nvar input3type = APPLICATION;\n\n// Duplicate or remove sets if you have more or fewer inputs\nvar msg0={};\nvar msg1={};\nvar msg2={};\nvar msg3={};\n\nmsg0.payload = {\n    \"Identifier\": 0,\n    \"IsConfigured\" : 1,\n    \"ConfiguredName\": input0,\n    \"InputSourceType\": input0type\n};\nmsg1.payload = {\n    \"Identifier\": 1,\n    \"IsConfigured\" : 1,\n    \"ConfiguredName\": input1,\n    \"InputSourceType\": input1type\n};\nmsg2.payload = {\n    \"Identifier\": 2,\n    \"IsConfigured\" : 1,\n    \"ConfiguredName\": input2,\n    \"InputSourceType\": input2type\n};\nmsg3.payload = {\n    \"Identifier\": 3,\n    \"IsConfigured\" : 1,\n    \"ConfiguredName\" : input3,\n    \"InputSourceType\" : input3type\n};\n\n\nreturn [msg0,msg1,msg2,msg3];","outputs":4,"noerr":0,"initialize":"","finalize":"","x":630,"y":620,"wires":[["2d4b00.3e03b5"],["efedc5ef.8d2798"],["9366feb3.836398"],["79217d31.72bfdc"]]},{"id":"c797e2ba.51097","type":"homekit-service","z":"193ef564.684623","isParent":true,"bridge":"f6a4260d.7e51e","parentService":"","name":"XGIMI","serviceName":"Television","topic":"","filter":false,"manufacturer":"Default Manufacturer","model":"Default Model","serialNo":"Default Serial Number","firmwareRev":"","hardwareRev":"","softwareRev":"","cameraConfigVideoProcessor":"ffmpeg","cameraConfigSource":"","cameraConfigStillImageSource":"","cameraConfigMaxStreams":2,"cameraConfigMaxWidth":1280,"cameraConfigMaxHeight":720,"cameraConfigMaxFPS":10,"cameraConfigMaxBitrate":300,"cameraConfigVideoCodec":"libx264","cameraConfigAudioCodec":"libfdk_aac","cameraConfigAudio":false,"cameraConfigPacketSize":1316,"cameraConfigVerticalFlip":false,"cameraConfigHorizontalFlip":false,"cameraConfigMapVideo":"0:0","cameraConfigMapAudio":"0:1","cameraConfigVideoFilter":"scale=1280:720","cameraConfigAdditionalCommandLine":"-tune zerolatency","cameraConfigDebug":false,"cameraConfigSnapshotOutput":"disabled","cameraConfigInterfaceName":"","characteristicProperties":"{    \"RemoteKey\":null}","waitForSetupMsg":false,"outputs":2,"x":870,"y":220,"wires":[["896211fa.a9987"],["74027a23.ff8ef4","5a11d2c3.437144"]]},{"id":"5bfb7f6a.8344c8","type":"homekit-service","z":"193ef564.684623","isParent":false,"bridge":"f6a4260d.7e51e","parentService":"c797e2ba.51097","name":"Television Speaker","serviceName":"TelevisionSpeaker","topic":"","filter":false,"manufacturer":"Default Manufacturer","model":"Default Model","serialNo":"Default Serial Number","firmwareRev":"","hardwareRev":"","softwareRev":"","cameraConfigVideoProcessor":"ffmpeg","cameraConfigSource":"","cameraConfigStillImageSource":"","cameraConfigMaxStreams":2,"cameraConfigMaxWidth":1280,"cameraConfigMaxHeight":720,"cameraConfigMaxFPS":10,"cameraConfigMaxBitrate":300,"cameraConfigVideoCodec":"libx264","cameraConfigAudioCodec":"libfdk_aac","cameraConfigAudio":false,"cameraConfigPacketSize":1316,"cameraConfigVerticalFlip":false,"cameraConfigHorizontalFlip":false,"cameraConfigMapVideo":"0:0","cameraConfigMapAudio":"0:1","cameraConfigVideoFilter":"scale=1280:720","cameraConfigAdditionalCommandLine":"-tune zerolatency","cameraConfigDebug":false,"cameraConfigSnapshotOutput":"disabled","cameraConfigInterfaceName":"","characteristicProperties":"{\"VolumeControlType\":1,\"VolumeSelector\":true,\"Mute\":true}","waitForSetupMsg":false,"outputs":2,"x":1330,"y":1000,"wires":[[],["f5810db9.3ab9b","8718a6de.2d6f5"]]},{"id":"2d4b00.3e03b5","type":"homekit-service","z":"193ef564.684623","isParent":false,"bridge":"","parentService":"c797e2ba.51097","name":"Input 0","serviceName":"InputSource","topic":"","filter":false,"manufacturer":"Default Manufacturer","model":"Default Model","serialNo":"Default Serial Number","firmwareRev":"","hardwareRev":"","softwareRev":"","cameraConfigVideoProcessor":"ffmpeg","cameraConfigSource":"","cameraConfigStillImageSource":"","cameraConfigMaxStreams":2,"cameraConfigMaxWidth":1280,"cameraConfigMaxHeight":720,"cameraConfigMaxFPS":10,"cameraConfigMaxBitrate":300,"cameraConfigVideoCodec":"libx264","cameraConfigAudioCodec":"libfdk_aac","cameraConfigAudio":false,"cameraConfigPacketSize":1316,"cameraConfigVerticalFlip":false,"cameraConfigHorizontalFlip":false,"cameraConfigMapVideo":"0:0","cameraConfigMapAudio":"0:1","cameraConfigVideoFilter":"scale=1280:720","cameraConfigAdditionalCommandLine":"-tune zerolatency","cameraConfigDebug":false,"cameraConfigSnapshotOutput":"disabled","cameraConfigInterfaceName":"","characteristicProperties":"{}","waitForSetupMsg":false,"outputs":2,"x":860,"y":600,"wires":[[],[]]},{"id":"efedc5ef.8d2798","type":"homekit-service","z":"193ef564.684623","isParent":false,"bridge":"","parentService":"c797e2ba.51097","name":"Input 1","serviceName":"InputSource","topic":"","filter":false,"manufacturer":"Default Manufacturer","model":"Default Model","serialNo":"Default Serial Number","firmwareRev":"","hardwareRev":"","softwareRev":"","cameraConfigVideoProcessor":"ffmpeg","cameraConfigSource":"","cameraConfigStillImageSource":"","cameraConfigMaxStreams":2,"cameraConfigMaxWidth":1280,"cameraConfigMaxHeight":720,"cameraConfigMaxFPS":10,"cameraConfigMaxBitrate":300,"cameraConfigVideoCodec":"libx264","cameraConfigAudioCodec":"libfdk_aac","cameraConfigAudio":false,"cameraConfigPacketSize":1316,"cameraConfigVerticalFlip":false,"cameraConfigHorizontalFlip":false,"cameraConfigMapVideo":"0:0","cameraConfigMapAudio":"0:1","cameraConfigVideoFilter":"scale=1280:720","cameraConfigAdditionalCommandLine":"-tune zerolatency","cameraConfigDebug":false,"cameraConfigSnapshotOutput":"disabled","cameraConfigInterfaceName":"","characteristicProperties":"{}","waitForSetupMsg":false,"outputs":2,"x":860,"y":660,"wires":[[],[]]},{"id":"9366feb3.836398","type":"homekit-service","z":"193ef564.684623","isParent":false,"bridge":"","parentService":"c797e2ba.51097","name":"Input 2","serviceName":"InputSource","topic":"","filter":false,"manufacturer":"Default Manufacturer","model":"Default Model","serialNo":"Default Serial Number","firmwareRev":"","hardwareRev":"","softwareRev":"","cameraConfigVideoProcessor":"ffmpeg","cameraConfigSource":"","cameraConfigStillImageSource":"","cameraConfigMaxStreams":2,"cameraConfigMaxWidth":1280,"cameraConfigMaxHeight":720,"cameraConfigMaxFPS":10,"cameraConfigMaxBitrate":300,"cameraConfigVideoCodec":"libx264","cameraConfigAudioCodec":"libfdk_aac","cameraConfigAudio":false,"cameraConfigPacketSize":1316,"cameraConfigVerticalFlip":false,"cameraConfigHorizontalFlip":false,"cameraConfigMapVideo":"0:0","cameraConfigMapAudio":"0:1","cameraConfigVideoFilter":"scale=1280:720","cameraConfigAdditionalCommandLine":"-tune zerolatency","cameraConfigDebug":false,"cameraConfigSnapshotOutput":"disabled","cameraConfigInterfaceName":"","characteristicProperties":"{}","waitForSetupMsg":false,"outputs":2,"x":860,"y":720,"wires":[[],[]]},{"id":"79217d31.72bfdc","type":"homekit-service","z":"193ef564.684623","isParent":false,"bridge":"","parentService":"c797e2ba.51097","name":"Input 3","serviceName":"InputSource","topic":"","filter":false,"manufacturer":"Default Manufacturer","model":"Default Model","serialNo":"Default Serial Number","firmwareRev":"","hardwareRev":"","softwareRev":"","cameraConfigVideoProcessor":"ffmpeg","cameraConfigSource":"","cameraConfigStillImageSource":"","cameraConfigMaxStreams":2,"cameraConfigMaxWidth":1280,"cameraConfigMaxHeight":720,"cameraConfigMaxFPS":10,"cameraConfigMaxBitrate":300,"cameraConfigVideoCodec":"libx264","cameraConfigAudioCodec":"libfdk_aac","cameraConfigAudio":false,"cameraConfigPacketSize":1316,"cameraConfigVerticalFlip":false,"cameraConfigHorizontalFlip":false,"cameraConfigMapVideo":"0:0","cameraConfigMapAudio":"0:1","cameraConfigVideoFilter":"scale=1280:720","cameraConfigAdditionalCommandLine":"-tune zerolatency","cameraConfigDebug":false,"cameraConfigSnapshotOutput":"disabled","cameraConfigInterfaceName":"","characteristicProperties":"{}","waitForSetupMsg":false,"outputs":2,"x":860,"y":780,"wires":[[],[]]},{"id":"8ff04730.1af6a","type":"inject","z":"193ef564.684623","name":"find out what Characteristics","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"foo\":\"bar\"}","payloadType":"json","x":1120,"y":920,"wires":[["5bfb7f6a.8344c8"]]},{"id":"896211fa.a9987","type":"switch","z":"193ef564.684623","name":"Active","property":"payload.Active","propertyType":"msg","rules":[{"t":"eq","v":"1","vt":"str"},{"t":"eq","v":"0","vt":"str"}],"checkall":"true","repair":false,"outputs":2,"x":1110,"y":160,"wires":[[],["31f9065.968d67a"]]},{"id":"74027a23.ff8ef4","type":"switch","z":"193ef564.684623","name":"ActiveIdentifier","property":"payload.ActiveIdentifier","propertyType":"msg","rules":[{"t":"eq","v":"0","vt":"str"},{"t":"eq","v":"1","vt":"str"},{"t":"eq","v":"2","vt":"str"},{"t":"eq","v":"3","vt":"str"}],"checkall":"true","repair":false,"outputs":4,"x":1160,"y":260,"wires":[["8bd45601.346ef"],["5c08ccd9.939f84"],["c069f16d.f2213","3165a5d7.57a10a"],["8edc2b1f.1d2498"]]},{"id":"8718a6de.2d6f5","type":"switch","z":"193ef564.684623","name":"Volume","property":"payload.VolumeSelector","propertyType":"msg","rules":[{"t":"eq","v":"0","vt":"str"},{"t":"eq","v":"1","vt":"str"}],"checkall":"true","repair":false,"outputs":2,"x":1640,"y":1020,"wires":[["2589b4da.22bc34"],["2c76a3d3.5e00fc"]]},{"id":"5a11d2c3.437144","type":"switch","z":"193ef564.684623","name":"RemoteKey","property":"payload.RemoteKey","propertyType":"msg","rules":[{"t":"eq","v":"4","vt":"str"},{"t":"eq","v":"5","vt":"str"},{"t":"eq","v":"6","vt":"str"},{"t":"eq","v":"7","vt":"str"},{"t":"eq","v":"8","vt":"str"},{"t":"eq","v":"9","vt":"str"},{"t":"eq","v":"11","vt":"str"},{"t":"eq","v":"15","vt":"str"}],"checkall":"true","repair":false,"outputs":8,"x":1190,"y":760,"wires":[["8a525653.71aa18"],["cbff070f.a6c0e8"],["2b8142ed.3dca36"],["d0f46323.5919f8"],["2dd76b7.0af7e14"],["512467d1.0aee3"],["e9ff3f29.ab3d48"],["6deaba9b.398444"]]},{"id":"2589b4da.22bc34","type":"change","z":"193ef564.684623","name":"vol+","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:115","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1860,"y":1020,"wires":[["ab0aa3f0.6b2af"]]},{"id":"2c76a3d3.5e00fc","type":"change","z":"193ef564.684623","name":"vol-","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:114","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1860,"y":1060,"wires":[["ab0aa3f0.6b2af"]]},{"id":"8bd45601.346ef","type":"change","z":"193ef564.684623","name":"Home","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:35","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1410,"y":220,"wires":[["ab0aa3f0.6b2af"]]},{"id":"8a525653.71aa18","type":"change","z":"193ef564.684623","name":"up","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:36","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1480,"y":620,"wires":[["ab0aa3f0.6b2af"]]},{"id":"cbff070f.a6c0e8","type":"change","z":"193ef564.684623","name":"down","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:38","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1480,"y":660,"wires":[["ab0aa3f0.6b2af"]]},{"id":"2b8142ed.3dca36","type":"change","z":"193ef564.684623","name":"left","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:50","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1480,"y":700,"wires":[["ab0aa3f0.6b2af"]]},{"id":"d0f46323.5919f8","type":"change","z":"193ef564.684623","name":"right","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:37","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1480,"y":740,"wires":[["ab0aa3f0.6b2af"]]},{"id":"512467d1.0aee3","type":"change","z":"193ef564.684623","name":"back","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:48","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1490,"y":840,"wires":[["ab0aa3f0.6b2af"]]},{"id":"e9ff3f29.ab3d48","type":"change","z":"193ef564.684623","name":"play/pause","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:49","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1510,"y":880,"wires":[["ab0aa3f0.6b2af"]]},{"id":"2dd76b7.0af7e14","type":"change","z":"193ef564.684623","name":"select","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:49","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1490,"y":800,"wires":[["ab0aa3f0.6b2af"]]},{"id":"6deaba9b.398444","type":"change","z":"193ef564.684623","name":"menu","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES:35","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1490,"y":920,"wires":[["ab0aa3f0.6b2af"]]},{"id":"31f9065.968d67a","type":"change","z":"193ef564.684623","name":"power on/off","rules":[{"t":"set","p":"payload","pt":"msg","to":"KEYPRESSES: 116","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1290,"y":160,"wires":[["ab0aa3f0.6b2af"]]},{"id":"ab0aa3f0.6b2af","type":"udp out","z":"193ef564.684623","name":"port:16735","addr":"192.168.0.167","iface":"","port":"16735","ipv":"udp4","outport":"","base64":false,"multicast":"false","x":1970,"y":160,"wires":[]},{"id":"c069f16d.f2213","type":"api-call-service","z":"193ef564.684623","name":"Netflix","server":"149c12be.d3cc1d","version":1,"debugenabled":false,"service_domain":"script","service":"turn_on","entityId":"script.mod_info","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1410,"y":320,"wires":[[]]},{"id":"8edc2b1f.1d2498","type":"change","z":"193ef564.684623","name":"HDMI2","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"action\":20000,\"controlCmd\":{\"data\":\"HDMI2\",\"delayTime\":0,\"mode\":5,\"time\":0,\"type\":0},\"msgid\":\"2\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1410,"y":420,"wires":[["f27bf62c.1c8e28"]]},{"id":"3165a5d7.57a10a","type":"change","z":"193ef564.684623","name":"HDMI1","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"action\":20000,\"controlCmd\":{\"data\":\"HDMI1\",\"delayTime\":0,\"mode\":5,\"time\":0,\"type\":0},\"msgid\":\"2\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1410,"y":380,"wires":[["f27bf62c.1c8e28"]]},{"id":"5c08ccd9.939f84","type":"change","z":"193ef564.684623","name":"Youtube","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"action\":20000,\"controlCmd\":{\"data\":\"com.liskovsoft.videomanager\",\"delayTime\":0,\"mode\":7,\"time\":0,\"type\":1},\"msgid\":\"2\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1420,"y":280,"wires":[["f27bf62c.1c8e28"]]},{"id":"f27bf62c.1c8e28","type":"udp out","z":"193ef564.684623","name":"port:16750","addr":"192.168.0.167","iface":"","port":"16750","ipv":"udp4","outport":"","base64":false,"multicast":"false","x":1640,"y":280,"wires":[]},{"id":"22c35fbe.8f216","type":"debug","z":"193ef564.684623","name":"State and source output","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":1310,"y":40,"wires":[]},{"id":"cfa6ed2c.e4fa7","type":"server-state-changed","z":"193ef564.684623","name":"XGIMI status","server":"d06297cb.c4f038","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.xgimi_on_off","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"","halt_if_type":"str","halt_if_compare":"is","outputs":1,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":480,"y":60,"wires":[["5fd17f66.09a56"]]},{"id":"5fd17f66.09a56","type":"change","z":"193ef564.684623","name":"轉換","rules":[{"t":"change","p":"topic","pt":"msg","from":"binary_sensor.xgimi_on_off","fromt":"str","to":"","tot":"str"},{"t":"change","p":"payload","pt":"msg","from":"on","fromt":"str","to":"{\"Active\":1}","tot":"json"},{"t":"change","p":"payload","pt":"msg","from":"off","fromt":"str","to":"{\"Active\":0}","tot":"json"}],"action":"","property":"","from":"","to":"","reg":false,"x":770,"y":80,"wires":[["22c35fbe.8f216","c797e2ba.51097"]]},{"id":"f6a4260d.7e51e","type":"homekit-bridge","bridgeName":"Television Bridge","pinCode":"111-11-111","port":"","allowInsecureRequest":false,"manufacturer":"Default Manufacturer","model":"Default Model","serialNo":"Default Serial Number","firmwareRev":"","hardwareRev":"","softwareRev":"","customMdnsConfig":false,"mdnsMulticast":true,"mdnsInterface":"","mdnsPort":"","mdnsIp":"","mdnsTtl":"","mdnsLoopback":true,"mdnsReuseAddr":true,"allowMessagePassthrough":false},{"id":"149c12be.d3cc1d","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true},{"id":"d06297cb.c4f038","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":false,"cacheJson":true}]

分幾個區塊來講解一下匯入後node-red後要修改的內容

1. 匯入後node-red裡的XGIMI要點2下更新

2. 接下來要實現homekit按鍵切換hdmi作用

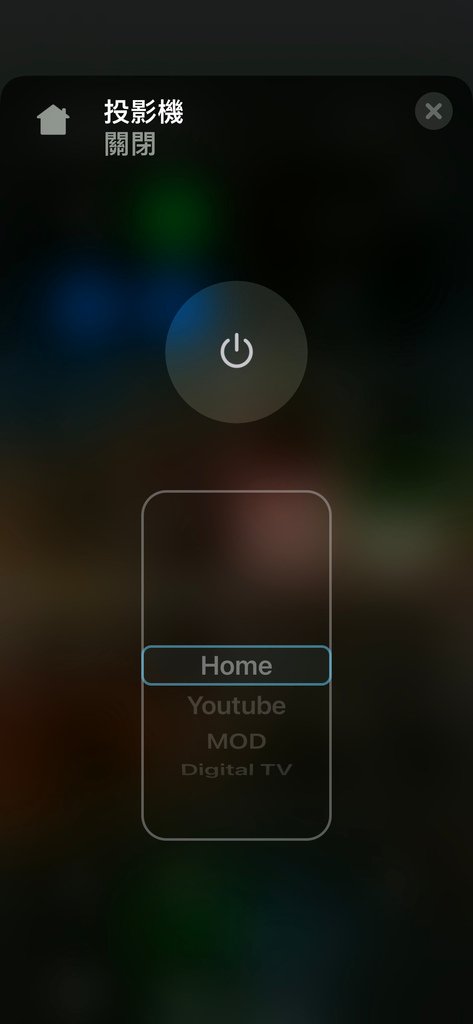

input 0,1,2,3就會顯示Home（首頁）,投影機的youtube（需安裝smart youtube app）, MOD（HDMI1）,Digital TV(HDMI2)，

當我選擇不同的項目，

XGIMI投影機就會切換首頁或不同的HDMI，

這裡要點開set up inputs設定名稱。

3. 接下來設定開關機，

因為極米投影機無法送電就開機，

我又不想只關投影讓機器繼續跑，

所以還是用遙控器開機，

開關機的狀態用剛剛xgimi.yaml的ping去判斷

off的部份就參考下圖。

msg.payload就是用來輸出udp指令，

port 16735,16750這種灰色的按鍵都是要指定接收指令的極米投影機，

所以必須點開來更改自己投影機的ip

4. 然後設定input 1,2,3的動作

input 0的部份我是設定首頁

input 1是投影機的smart youtube app，

payload是{"action":20000,"controlCmd":{"data":"com.liskovsoft.videomanager","delayTime":0,"mode":7,"time":0,"type":1},"msgid":"2"}

也可以到資料夾andriod/data查詢其他的app自行設定。

input 2我有設定一個腳本會讓遙控器操控mod電視盒打開Netflix，

然後會讓極米投影機切到HDMI1，

input 3則是HDMI2了。

5. 接著是遙控器的上下左右、菜單、選擇等等。

6. 最後這個區塊是用來調整音量大小，

當iphone開啟遙控器時，

手機的音量鍵就可以控制投影機音量。

television speaker,input0,1,2,3要點開來Parent Service選擇XGIMI

修改完要部屬

最後home assistant會產生一個QR code讓homekit加入，

加入碼是111-11-111
